Our Product
HP-4 Hand Plane
Coming 2026 – The HP-4 Hand Plane reimagines the #4 smoother: 25% lighter, bevel up blade, and zero backlash depth adjuster for dialed-in control and refined finishing
Choose options
Feature Highlights
Precision engineering and durable materials—crafted for professionals who demand the best.
Optimized Weight (3.2lb)
25% lighter than a standard #4 plane—reduces fatigue while maintaining cutting power.

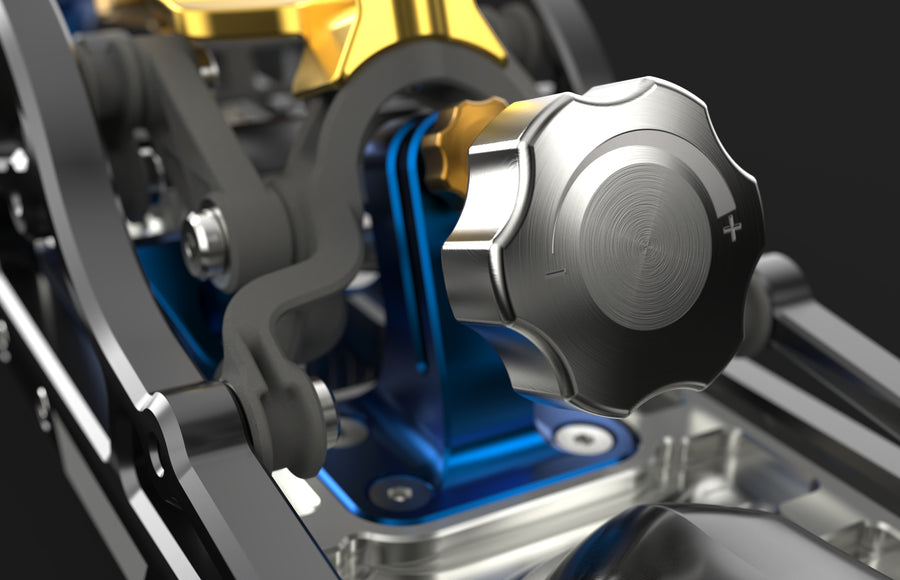

Zero-Backlash Adjustment
Smooth, predictable depth control with no play or guesswork.

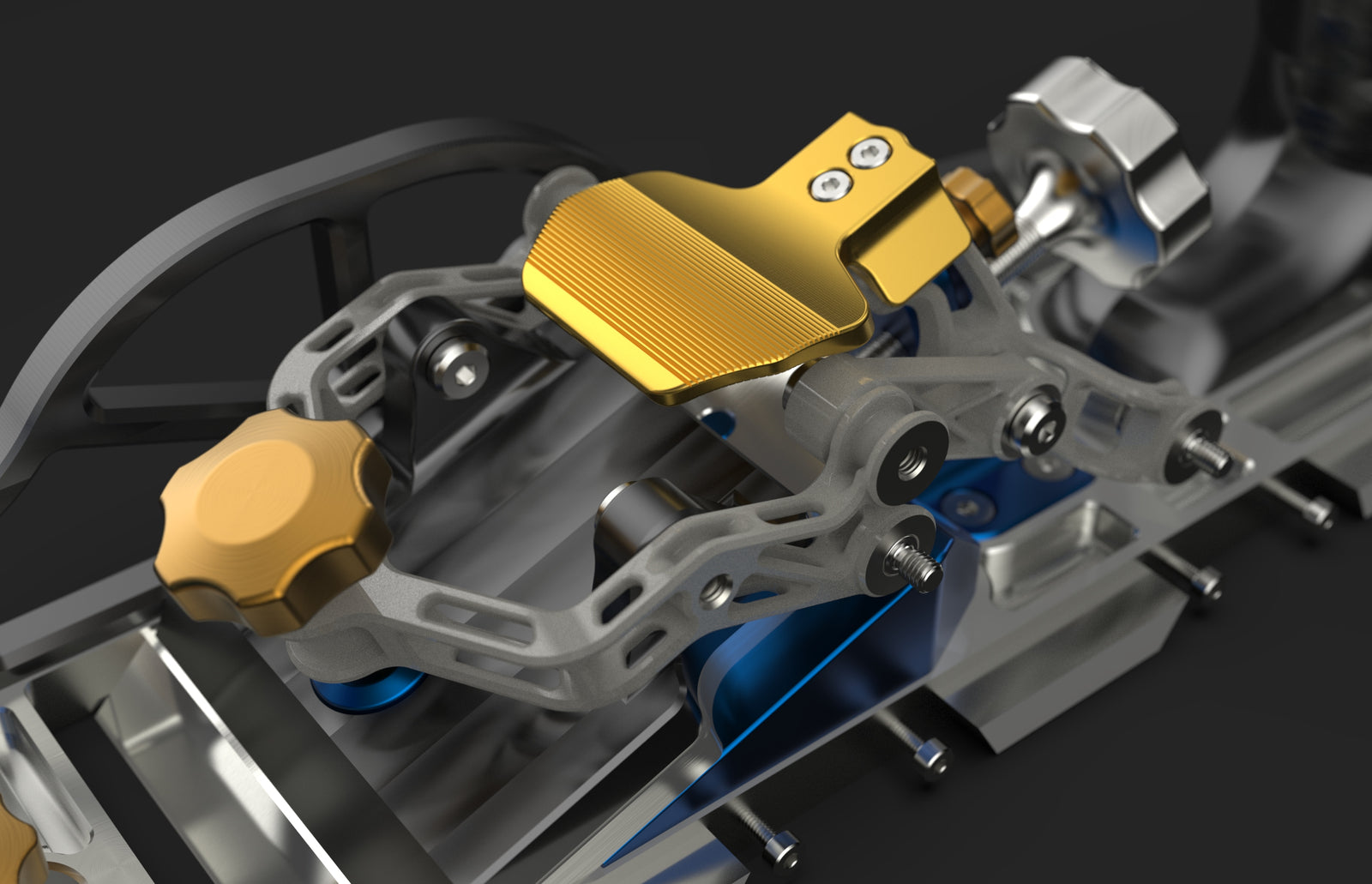

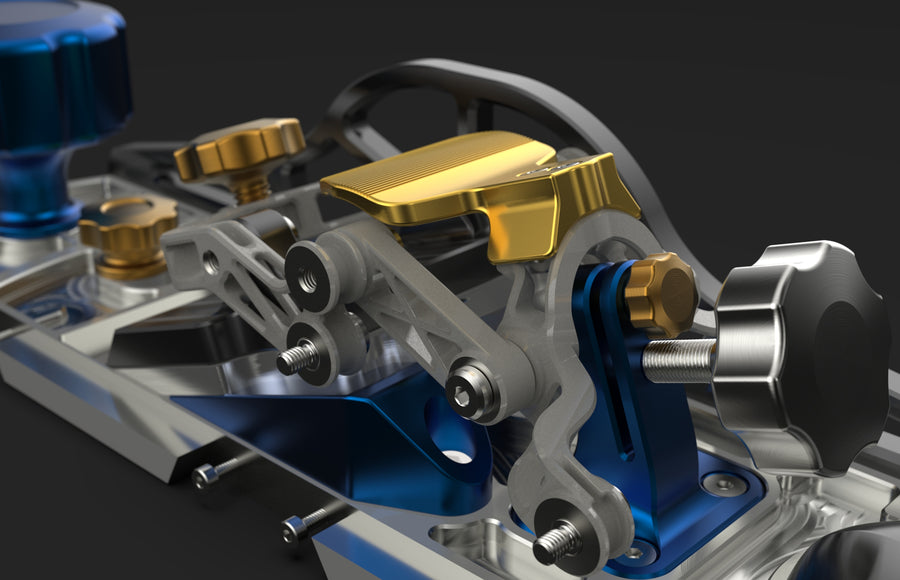

Quick-Access Blade Cap
Smart linkage system enables fast blade adjustment and removal.
Bevel-Up Geometry
20° bed paired with a 25° A2 bevel-up blade for a 45° effective cutting angle.
Precision-Ground Sole
304 stainless steel sole ground flat within 0.2 mm across the full length.
Key Benefits
Direct, Repeatable Adjustments
Less Fatigue Over Time
Controlled Cutting
Adjustable mouth helps manage tear‑out and dialing in fine finishing passes.
Focused Workflow
Technical Specifications
3.2 lb
Weight
20°
Bed Angle
A2 tool steel, 25° bevel‑up
Blade
45°
Effective Cutting Angle
0.010” (0.27 mm) per full revolution
Adjustment Resolution
Adjustable
Mouth
304 stainless steel, precision ground (0.2 mm flatness over length)
Sole
Frog
Billet 6061‑T6 aluminum
Feature
HP-4 Hand Plane
Traditional
Weight
3.2 lb — optimized to reduce fatigue while maintaining momentum
~4.5 lb typical cast‑iron #4
Adjustment Precision
Zero‑backlash blade depth adjustment; 0.010 in (0.27 mm) per full revolution
Friction‑based yoke systems; variable feel and backlash common
Mouth Adjustability
Fully adjustable mouth for fine finishing or heavier cuts
Fixed or coarse adjustment depending on model
Sole Material & Flatness
304 stainless steel sole, ground to 0.2 mm flatness over full length
Cast iron sole; flatness varies by manufacturer and price tier
Blade Access & Adjustment
Quick‑lift blade cap linkage for fast depth changes and easy blade removal
Cap iron removal required for major adjustments or blade changes
Overall Experience
Deliberate, controlled, modern workflow focused on consistency
Traditional workflow; effective but slower to adjust and tune
Warranty
Every HP‑4 Hand Plane is backed by a 1‑year warranty covering manufacturing defects.
