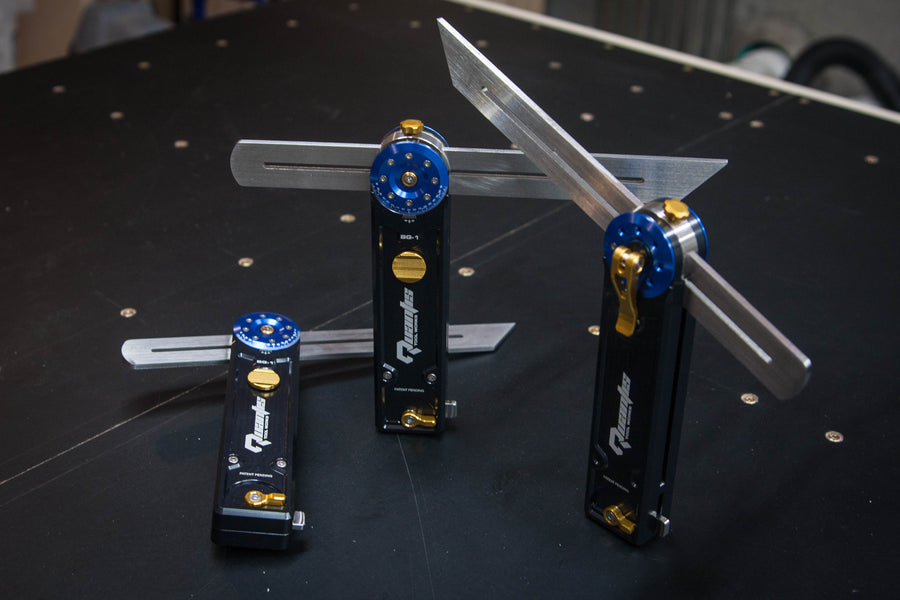

BG-1 Indexing Bevel Gauge

Name: BG-1 Indexing Bevel Gauge
Brand: Quantis Tool Works
Price: 275.00 USD
Availability: InStock

$275.00

Set any common angle in seconds — no protractor, no guesswork. The BG-1's patent-pending indexing mechanism clicks into positive-locking detents at 15°, 30°, 45°, 60°, 75°, and 90° on either side, plus 22.5° and 67.5°. Fine adjustment 0.1° Vernier scale for everything in between. Independent blade and angle locking keeps your setting exactly where you put it. CNC machined from aerospace-grade materials, built for professionals and serious hobbyists who won't compromise on accuracy.

$275.00

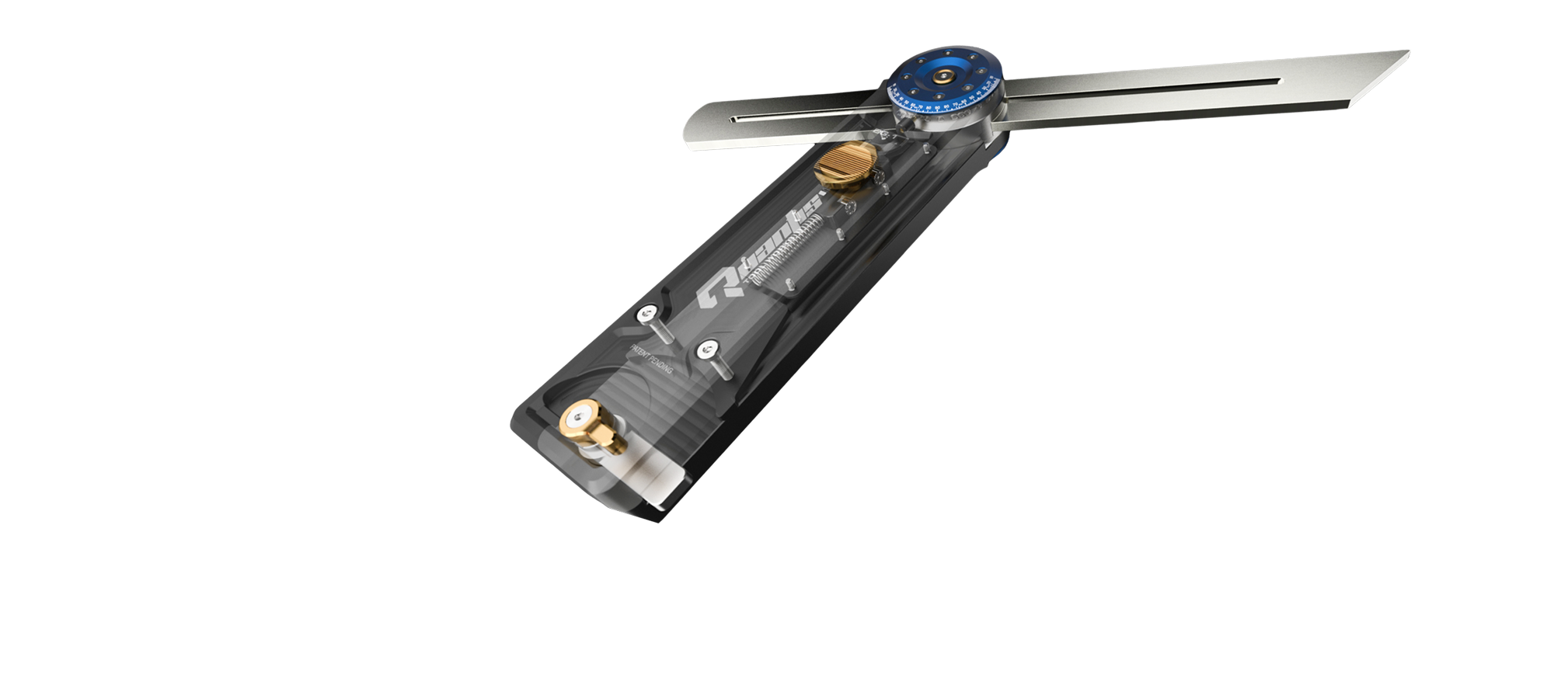

Feature Highlights

Precision engineering and durable materials—crafted for professionals who demand the best.

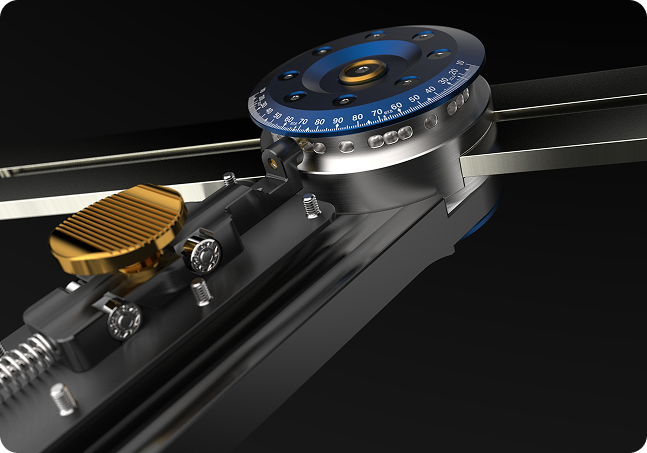

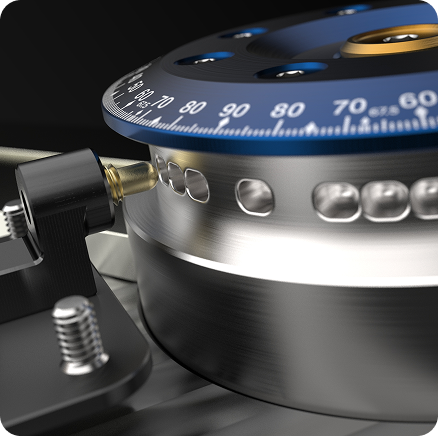

Patent-Pending Indexing Mechanism

Set angles quickly with positive stops.

Retractable Kickstand

Stable, hands-free adjustments

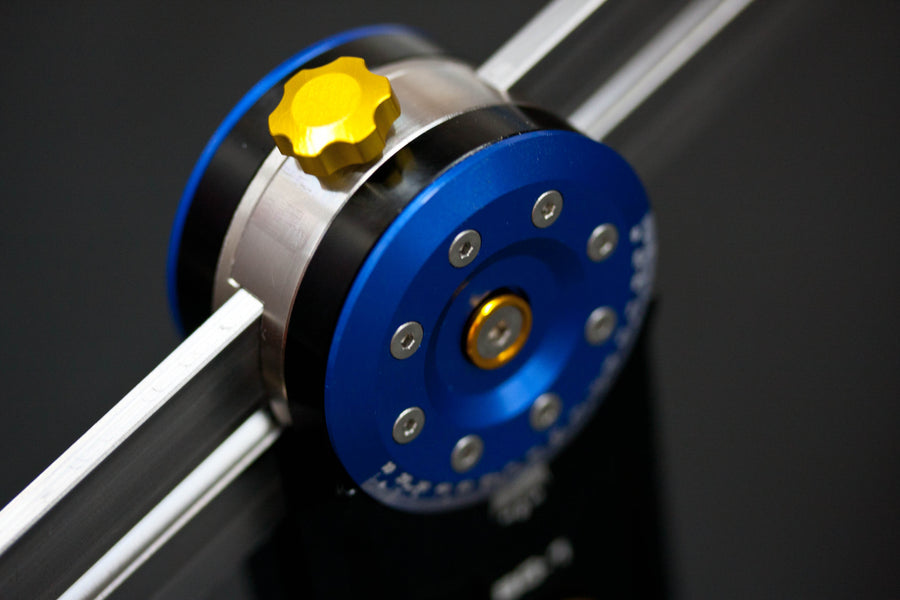

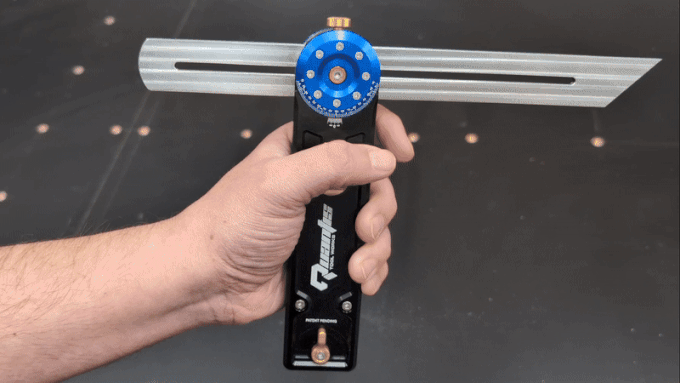

Independent Blade & Angle Locks

Adjust without losing your setting.

Premium Aerospace-Grade Materials

Built for a lifetime of use.

Key Benefits

Faster Setup

Eliminate protractors and guesswork.

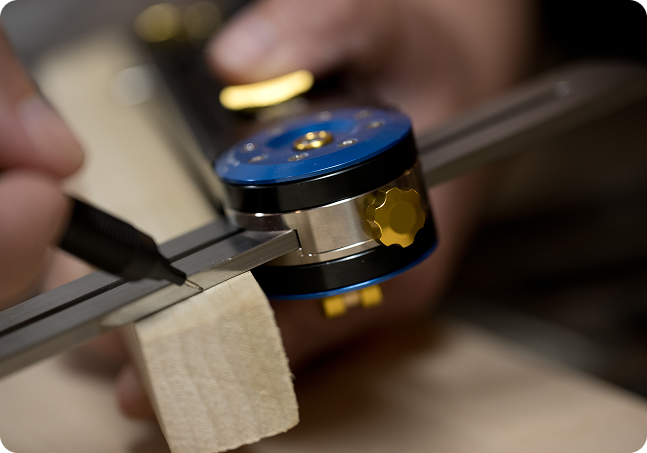

More Accurate Marking

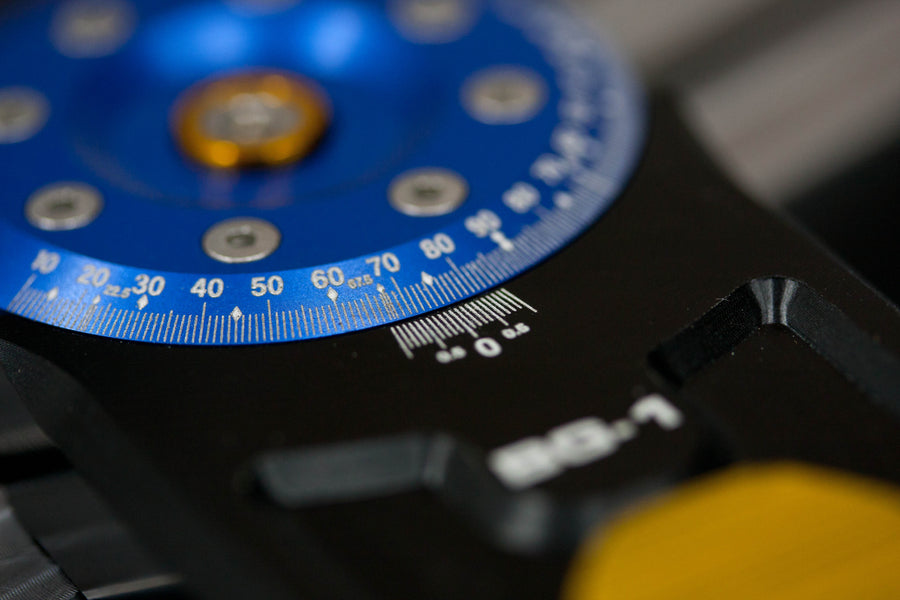

Positive indexing and fine Vernier scale

Built to Last

Durable metals, no plastic.

Confidence in Every Angle

Rock-solid locks and repeatable results.

Technical Specifications

7.1” ( 180mm )

Handle Height

1.6” ( 40mm )

Handle Width

1” ( 25 mm )

Handle Depth

10” ( 255 mm )

Blade Length

±15°, 22.5°, 30°, 45°, 60°, 67.5°, 75° and 90°

Angle Detents

10° – 170°

Aerospace grade materials and enduring finishes for long working lives.

1.44lbs ( 653 kg )

Weight

From Setup to Finish, Always Precise

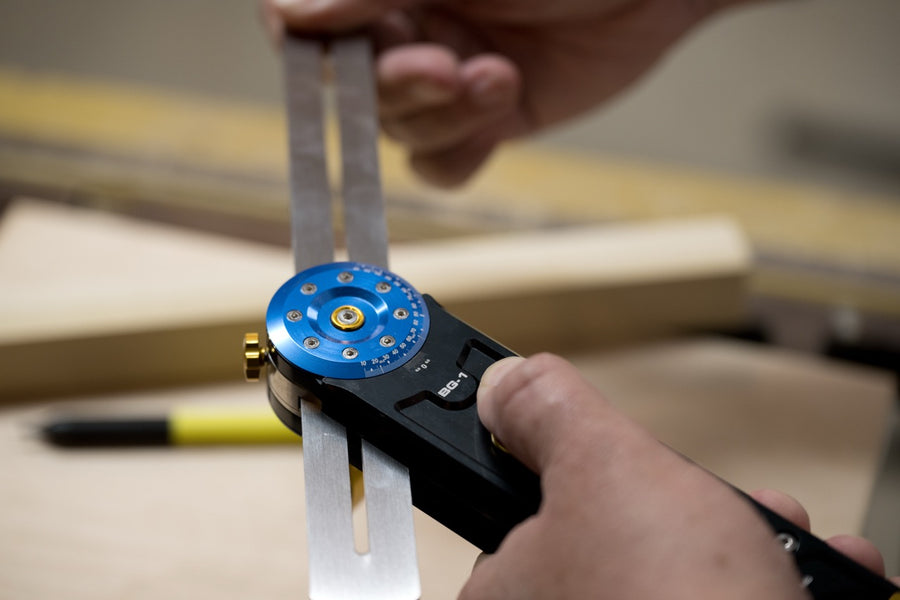

Perfect for setting up miters, complex compound angles, or refining project layouts with precision and repeatability.

Want to see the full story of our design and engineering process?

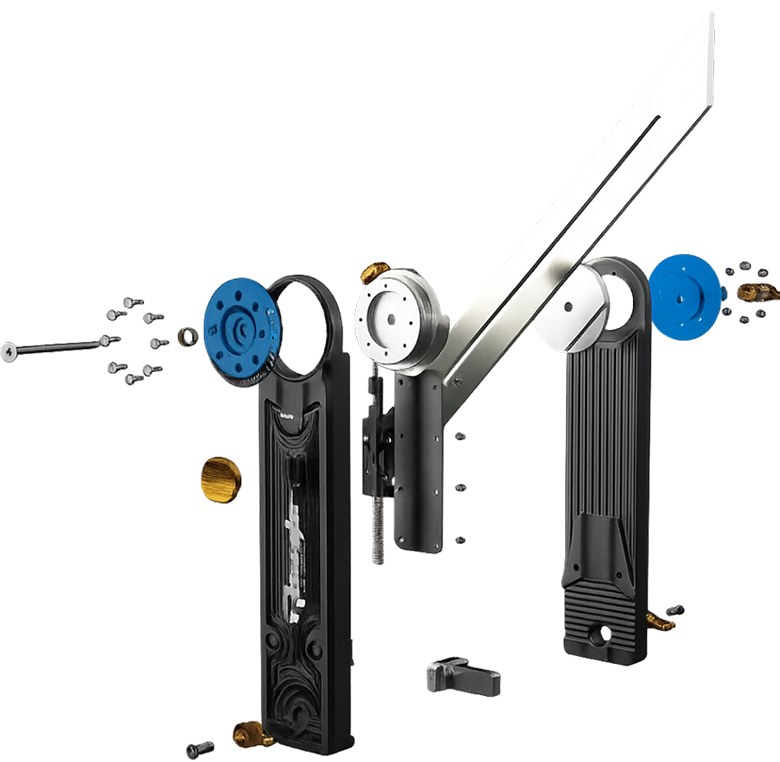

How We Build

Feature

BG-1 Indexing Bevel Gauge

Traditional Sliding Bevel

Angle setting method

Patent‑pending internal indexing with positive stops

Friction lock, continuous — no internal index

Common angle shortcuts

15°–165° in 15° steps plus 22.5°, 67.5°, 112.5°, 157.5°, Positive angle stops are within or less than a ±0.5° tolerance.

None — set manually each time

Fine adjustment / readout

Vernier scale to ~0.1° with 1° markings on tool

No on‑tool readout; relies on external protractor/angle finder

Angle & blade locking

Independent locks — adjust blade length without losing angle

Single lock — length changes can shift angle; recheck needed

Stability during adjustment

Retractable kickstand keeps blade flat to the work

None — hand‑held only

Angle retention

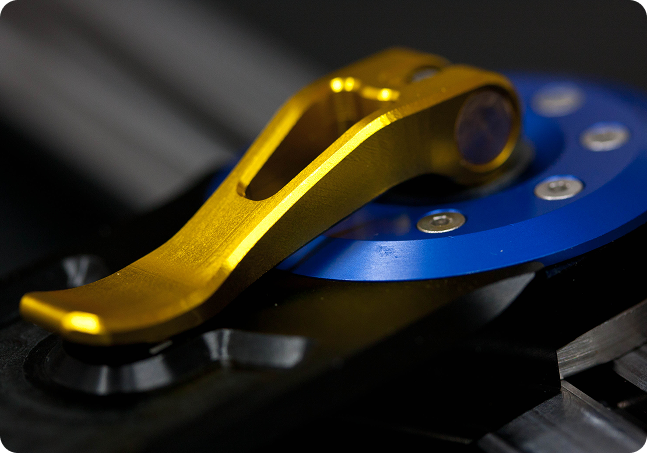

Positive stops + cam lock for repeatable, slip‑resistant settings

Friction‑only; bumping/handling can loosen angle

Setup time

Fast — indexed angles in seconds; other angles via vernier

Multi‑step — set with protractor, tighten, recheck

External tools required

No for indexed angles; vernier enables precise angle setting

Often — protractor/angle gauge to read/set

Materials

6061‑T651 aluminum body; 304 SS hardware; PVD‑coated 440C blade; no plastic

Varies (wood/brass/aluminum/stainless), quality varies

Rotation range

10°–170° by design, The BG‑1’s 10°–170° sweep is a design choice for the positive locking mechanism and rigidity; it covers common work angles while maintaining structural integrity

Typically 0°–180° (varies by model)

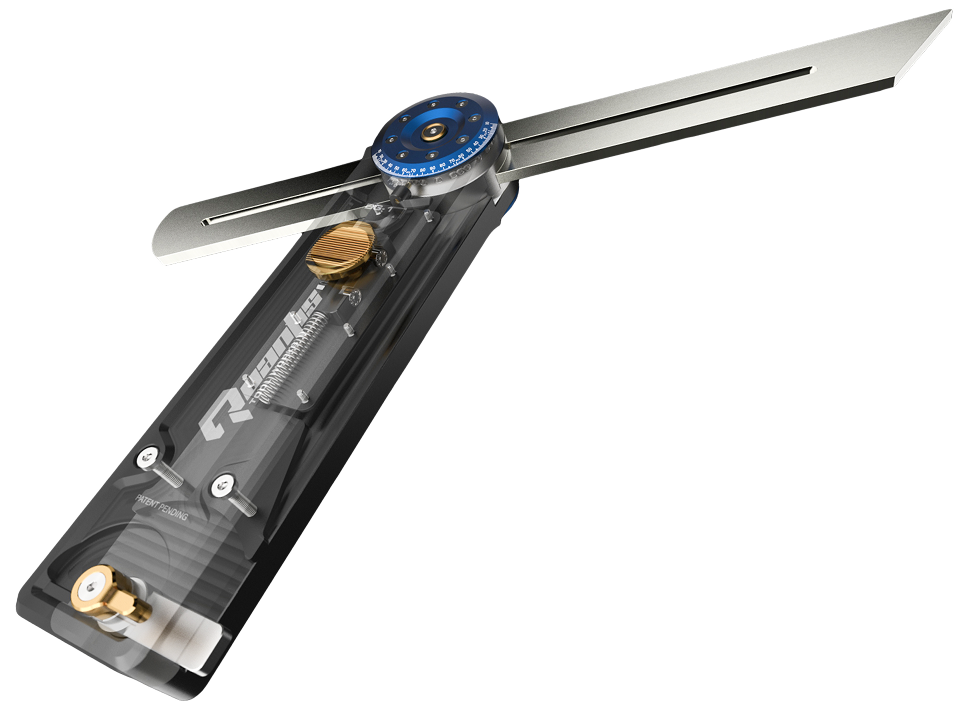

How It Works

Trusted by Craftsmen

Every Quantis tool embodies precision, discipline, and trust—engineer-tested, craftsman-refined, built for uncompromising performance.

This is the kind of tool that, as soon as you pick it up, you can feel the quality. There is no waste, everything about it is designed with purpose. I used to hate bevel gauges. This one has a permanent spot on my bench.

Zack T.

Furniture Maker

The BG-1 Bevel Gauge is an outstanding piece of precision equipment. The machining quality is exceptional, with every edge and angle feeling dialed-in and reliable. The materials are top-notch as well-solid, durable, and built to hold up to real shop use. It's one of those tools that immediately feels premium in the hand and quickly becomes a go-to for accurate, repeatable setup work. A truly awesome addition to any shop. Little scary to use because of how beautiful it is and get any scratches but it's a tool meant to be used.

Jamal E.

Master Fabricator

The BG-1 is incredible. Every detail down to the packaging. This is the top of the top of quality and intentional design.

Victoria D.

DIYer/Woodworking Hobbyist

The BG-1 Bevel Gauge is an awesome tool, proudly sitting in my box amongst some of the shiniest and intricate measuring equipment. A bevel gauge is not something I had considered using before, but the BG-1 has changed that in my workflow!

Josh V.

Motorsports Engineer

Warranty

Includes a 1-year warranty against manufacturing defects. Built from aerospace-grade aluminum and stainless steel for a lifetime of reliability.
